TTLock Proximity Reader

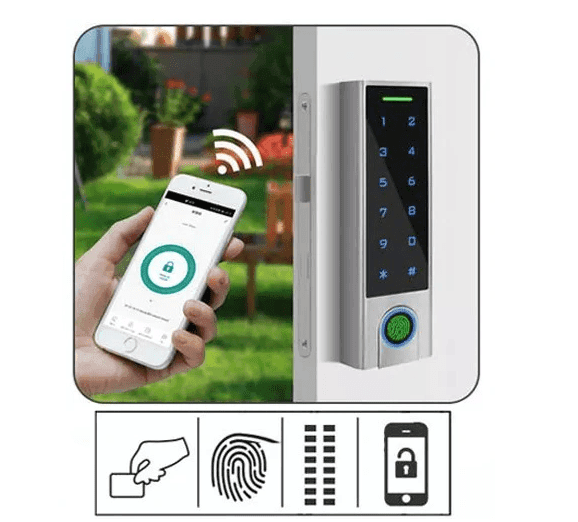

The TTLock AC02B proximity reader is an advanced access-control controller with a built-in fingerprint sensor, a Mifare 13.56 MHz card reader and a backlit numeric keypad for PIN entry. The device targets professional use cases where reliable and versatile access authorisation is required — it works both at a single passage and as part of a large access-control system covering entire buildings, production halls or public facilities.

The AC02B lets you open the door with five access methods: PIN code, fingerprint, Mifare proximity card, key fob and wireless remote. Every technology can be used in parallel, matching authorisation to specific user groups — e.g. full-time staff use cards, the cleaning crew uses time-based codes, and management uses a fingerprint. Memory holds up to 200 users and 150 custom PIN codes, which is enough for most offices, medical practices, law firms or industrial sites. The reader can be wired to any electric strike, reversible bolt or magnetic lock, making it a universal solution for interior and exterior doors, gates, technical doors and controlled passages.

The reader is operated through the TTLock app — the same one that manages our electronic door locks and fingerprint handles. From the app the administrator can grant and revoke permissions, generate time-based and one-time codes, monitor entry history in real time, and — after adding a Wi‑Fi gateway — manage access remotely from anywhere in the world. The solid zinc-alloy housing resists sabotage, impacts and vandalism, while the IP66 waterproof rating provides full protection against water jets, dust and changing weather. A wide operating range from -20°C to +60°C means the reader works reliably in Polish frosts and hot summer days alike.
